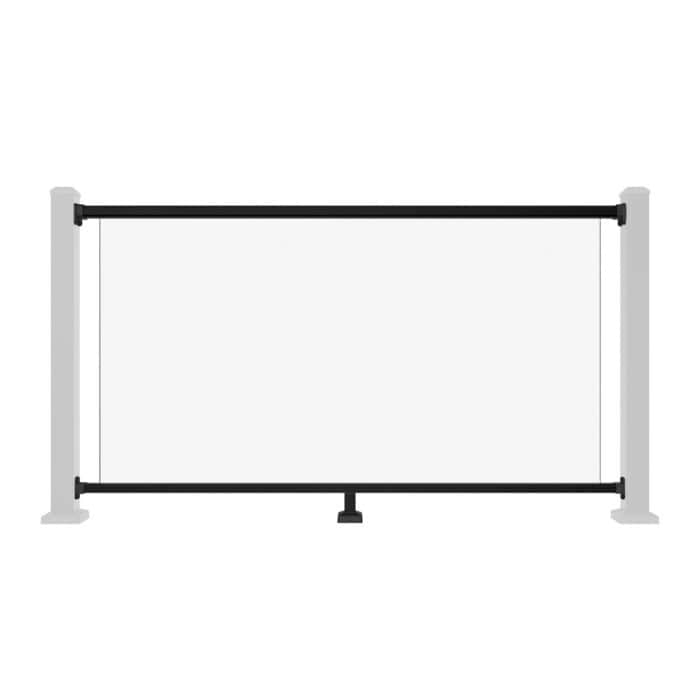

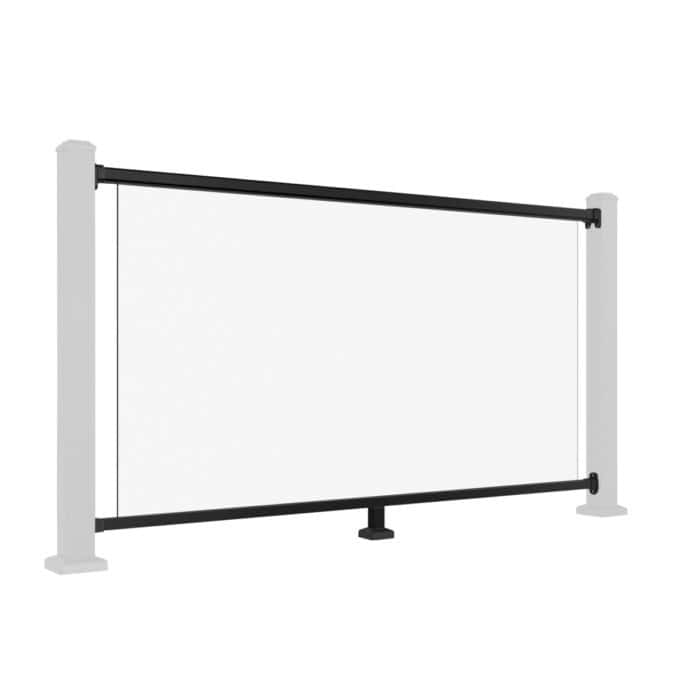

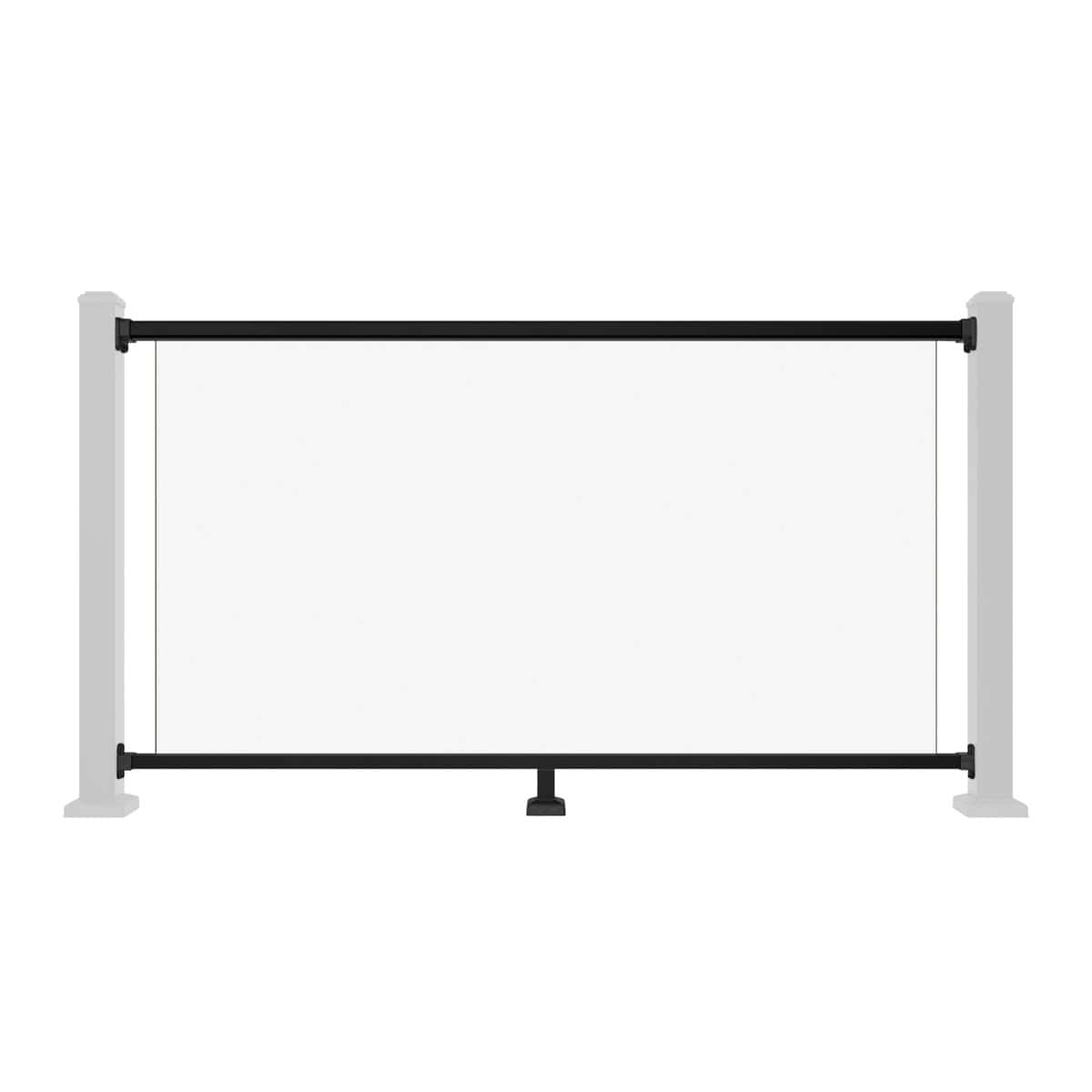

Aluminium Balustrade Glass Railing

Specifications

Package Contents

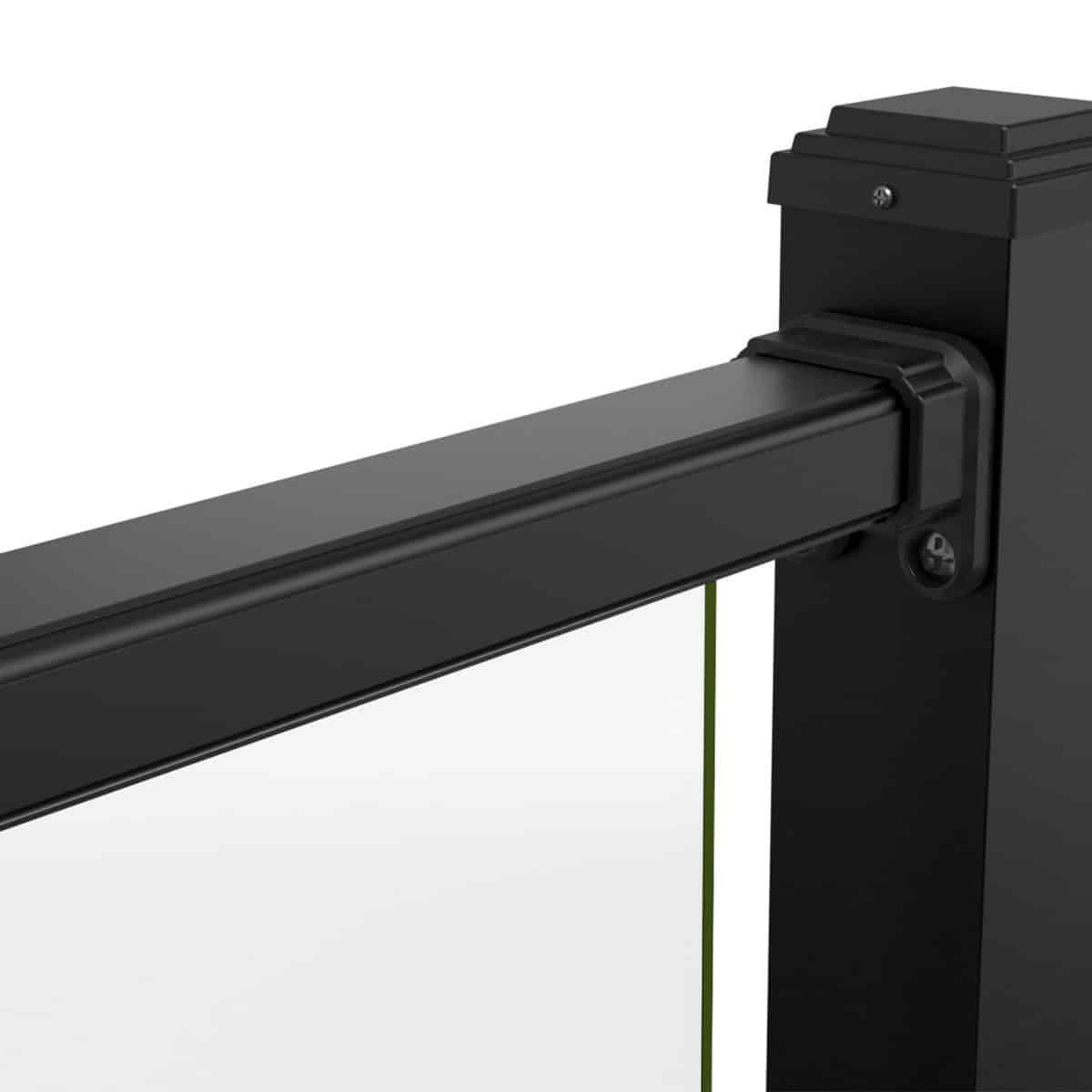

• 1 x Aluminium Handrail (With rubber gasket)

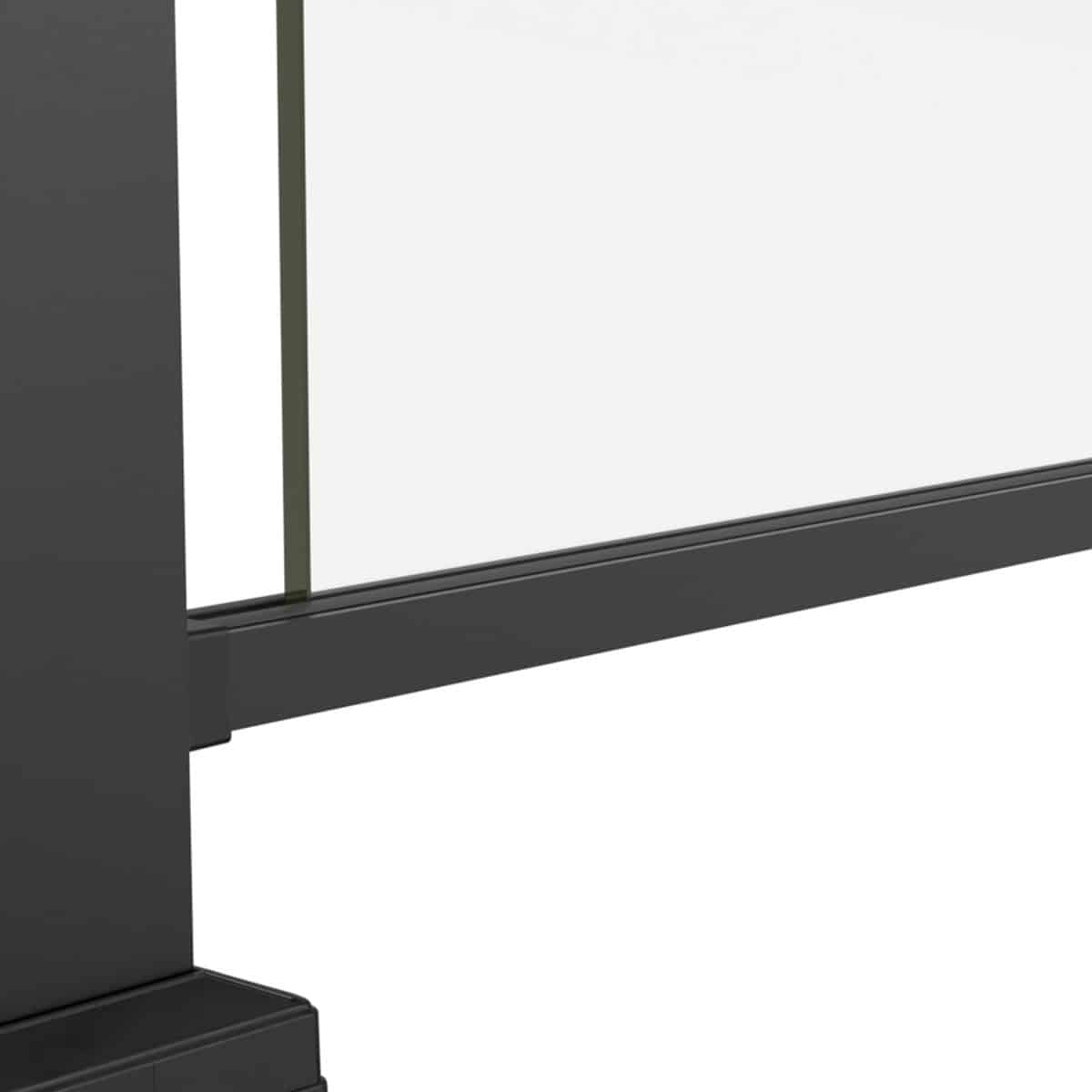

• 1 x Aluminium Bottom Rail (With Rubber Gasket & Foot Block)
• 1 x Tempered Safety Glass Sheet
• Relevant Fixings, Covers & Brackets

Materials, Finishes & Dimensions

• Aluminium Handrail: 1910mm x 60mm x 40mm (2mm thickness)
  • Grade: Aluminium 6063
  • Finish: Textured Matt Black (RAL 9005) Powder Coating (AAMA 2604 Standard)
• Aluminium Bottom Rail: 1910mm x 40mm x 30mm (2mm thickness)
  • Grade: Aluminium 6063
  • Finish: Textured Matt Black (RAL 9005) Powder Coating (AAMA 2604 Standard)
• Aluminium Foot Block: 98mm x 40mm x 40mm (1.6mm thickness)
  • Grade: Aluminium 6063
  • Finish: Textured Matt Black (RAL 9005) Powder Coating (AAMA 2604 Standard)
• Glass Sheet: 1750mm x 950mm (12mm thickness)
  • Type: Tempered Safety Glass (EN 12150 Approved)
  • Finish: Clear

Performance Data

• Reaction to Fire (EN 13501-1:2018): A1
• CE To EN 13241:2003+A2:2016 (Commercial Railings): Pass
• CE To EN 1090-1:2009+A1:2011 (Aluminium Structures): Pass
• CE To EN 12604:2017+A1:2020 (Barrier Mechanics): Pass

Load Test Results *

• BS 6180:2011 – (i) Domestic & Residential Activities: All areas within or serving exclusively one single family dwellings including stairs, landings etc. but excluding external balconies and edges of roofs.
  • Horizontal uniformly distributed line load: No Failure @ 0.36kN/m
  • Uniformly distributed load applied to the infill: No Failure @ 0.5kN/m2
  • A point load applied to part of the infill: No Failure @ 0.25kN
• BS 6180:2011 – (ii) Domestic & Residential Activities: Other residential, i.e. houses of multiple occupancy and balconies, including Juliette balconies and edges of roofs in single family dwellings.
  • Horizontal uniformly distributed line load: No Failure @ 0.74kN/m
  • Uniformly distributed load applied to the infill: No Failure @ 1.0kN/m2
  • A point load applied to part of the infill: No Failure @ 0.5kN
• BS 6180:2011 – (iii) Offices and work areas not included elsewhere, including storage areas: Light access stairs and gangways not more than 600 mm wide.
  • Horizontal uniformly distributed line load: No Failure @ 0.22KN/m
• BS 6180:2011 – (iv) Offices and work areas not included elsewhere, including storage areas: Light pedestrian traffic routes in industrial and storage buildings except designated escape routes.
  • Horizontal uniformly distributed line load: No Failure @ 0.36kN/m
  • Uniformly distributed load applied to the infill: No Failure @ 0.5kN/m2
  • A point load applied to part of the infill: No Failure @ 0.25kN
• BS 6180:2011 – (v) Offices and work areas not included elsewhere, including storage areas: Areas not susceptible to overcrowding in office and institutional buildings, also industrial and storage buildings except as given above.
  • Horizontal uniformly distributed line load: No Failure @ 0.74kN/m
  • Uniformly distributed load applied to the infill: No Failure @ 1.0kN/m2
  • A point load applied to part of the infill: No Failure @ 0.5kN
• BS 6180:2011 – (viii) Areas without obstacles for moving people and not susceptible to overcrowding: Stairs, landings, corridors, ramps.
  • Horizontal uniformly distributed line load: No Failure @ 0.74kN/m
  • Uniformly distributed load applied to the infill: No Failure @ 1.0kN/m2
  • A point load applied to part of the infill: No Failure @ 0.5kN
• BS 6180:2011 – (viii) Areas without obstacles for moving people and not susceptible to overcrowding: External balconies including Juliette balconies and edges of roofs. Footways and pavements within building curtilage adjacent to basement/sunken areas.
  • Horizontal uniformly distributed line load: No Failure @ 0.74kN/m
  • Uniformly distributed load applied to the infill: No Failure @ 1.0kN/m2
  • A point load applied to part of the infill: No Failure @ 0.5kN

* Results based on the correct installation of the full NeoTimber® balustrade system including railing and posts.

Warranty

• 25-year limited warranty for residential applications
• 10-year limited warranty for commercial applications
